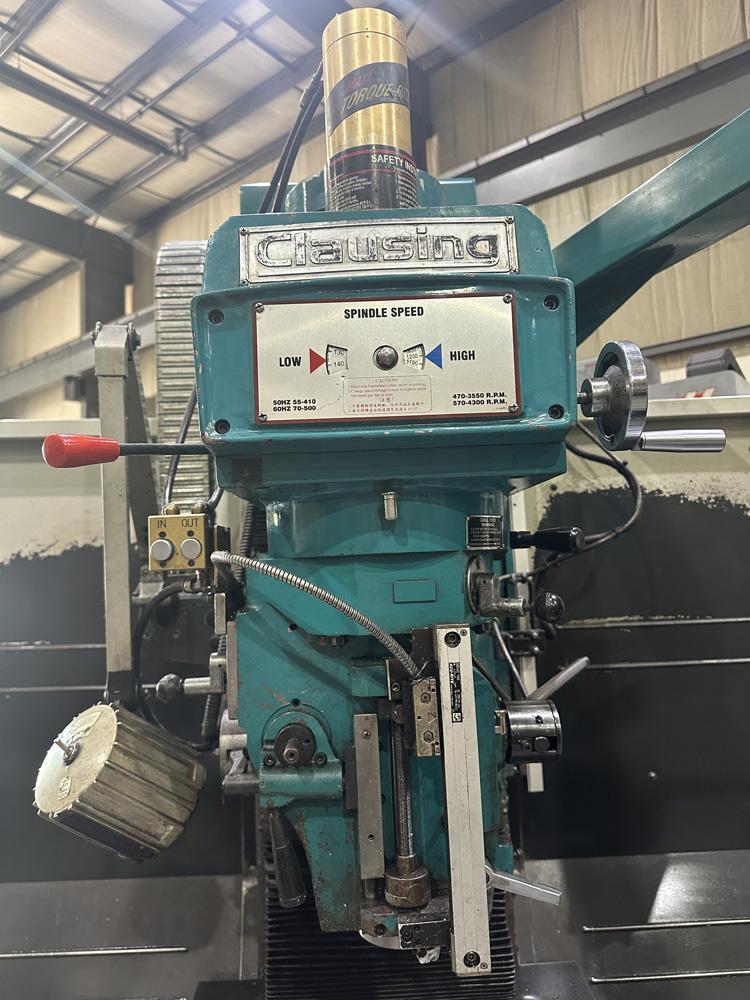

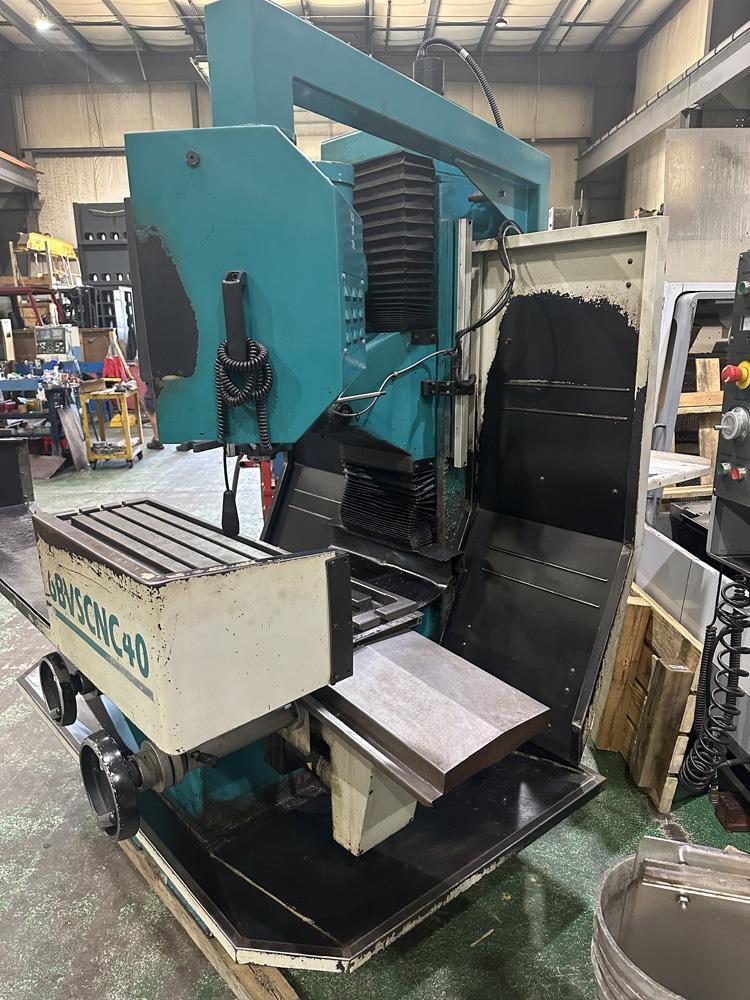

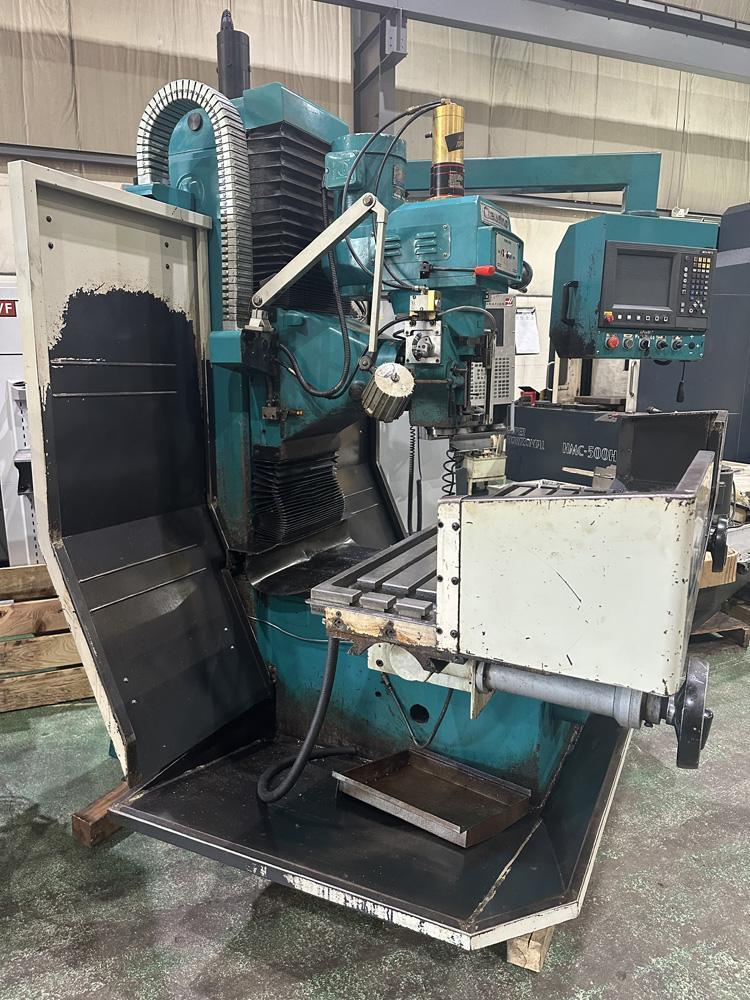

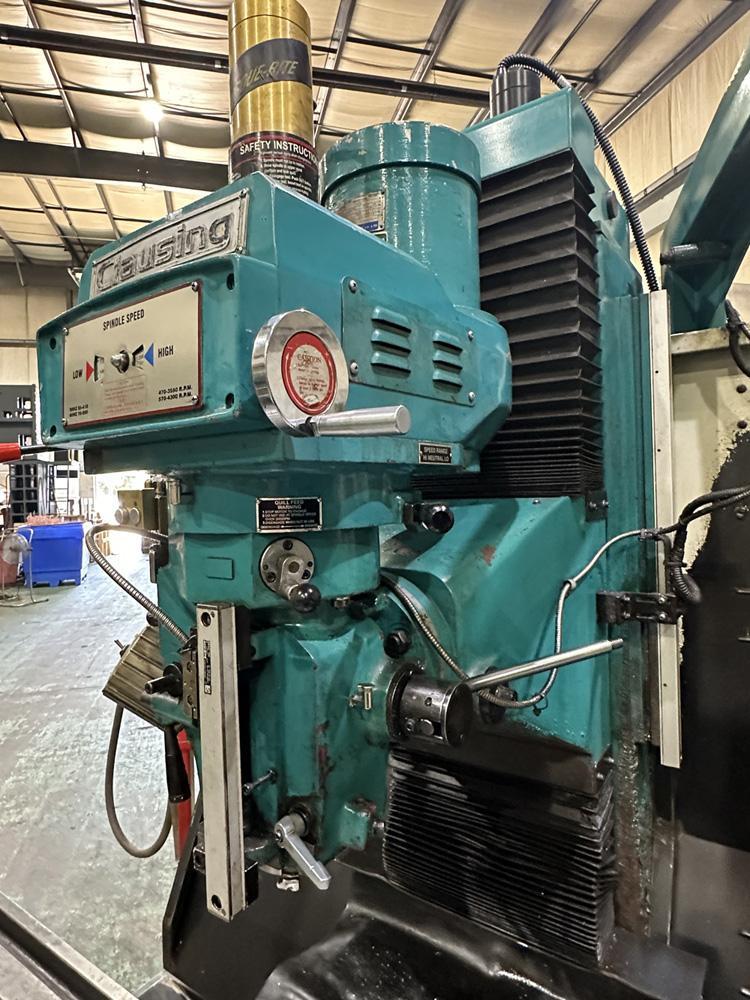

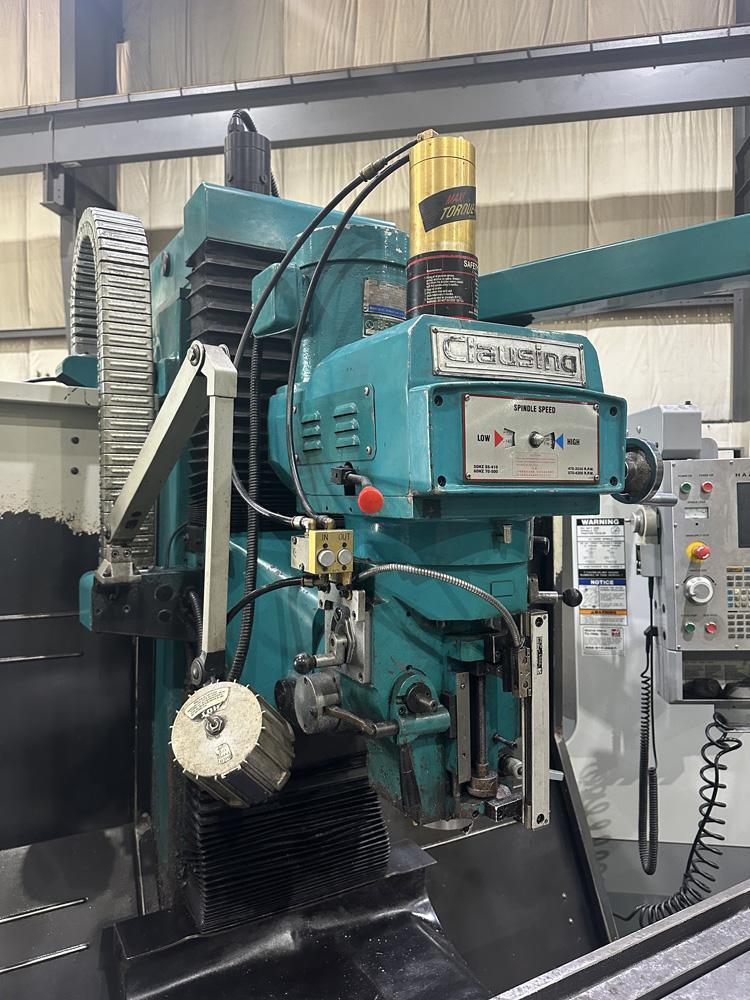

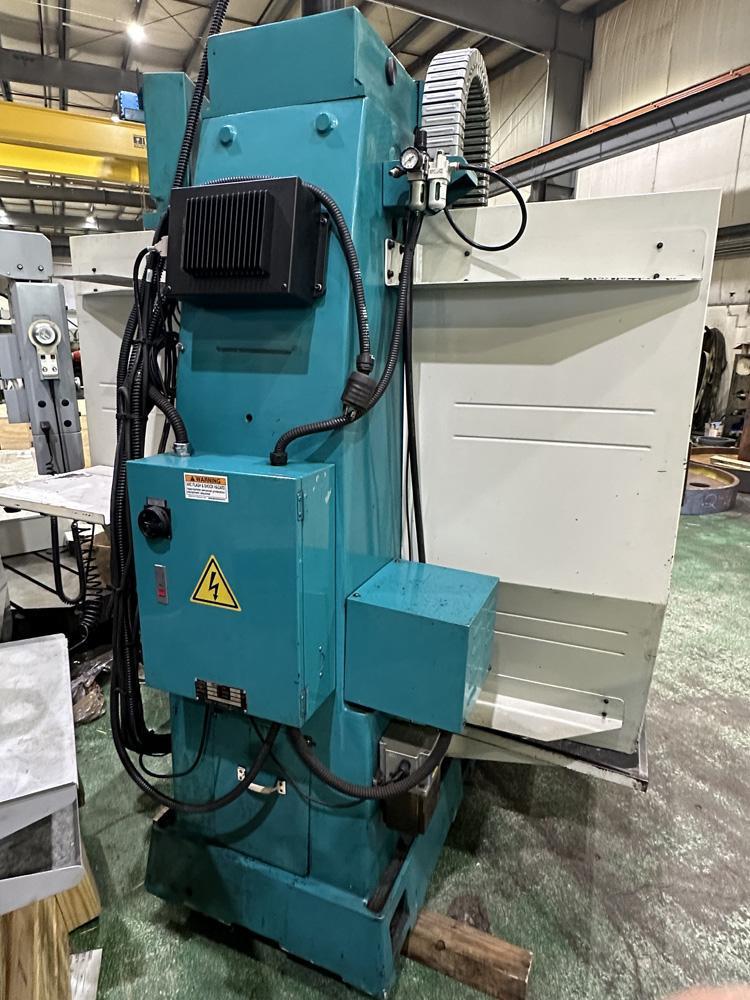

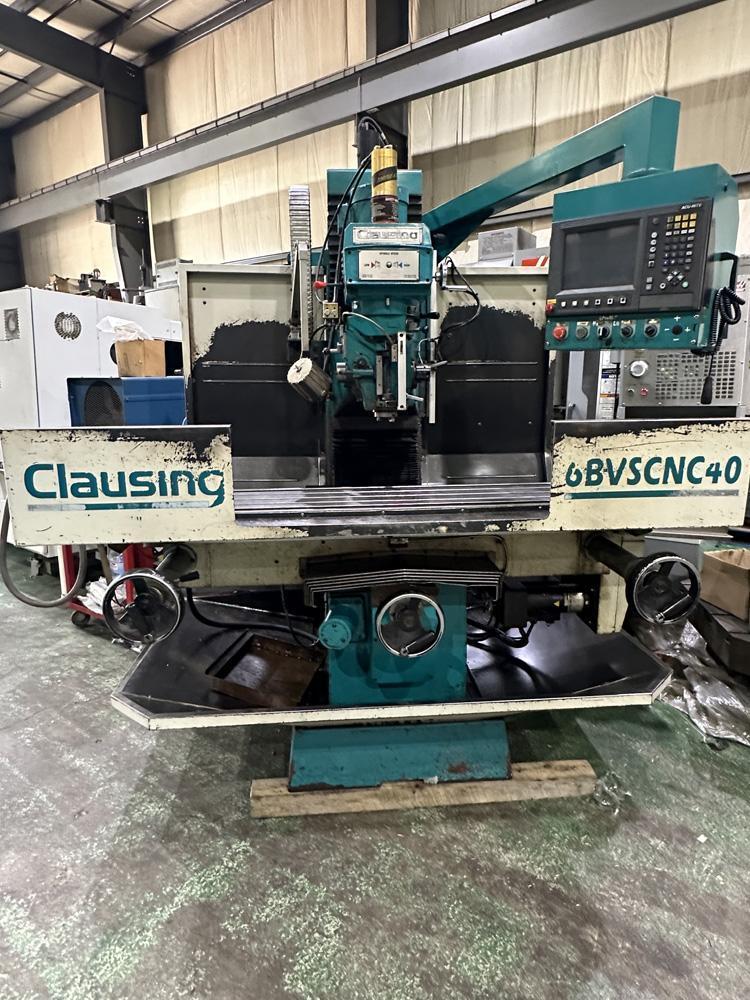

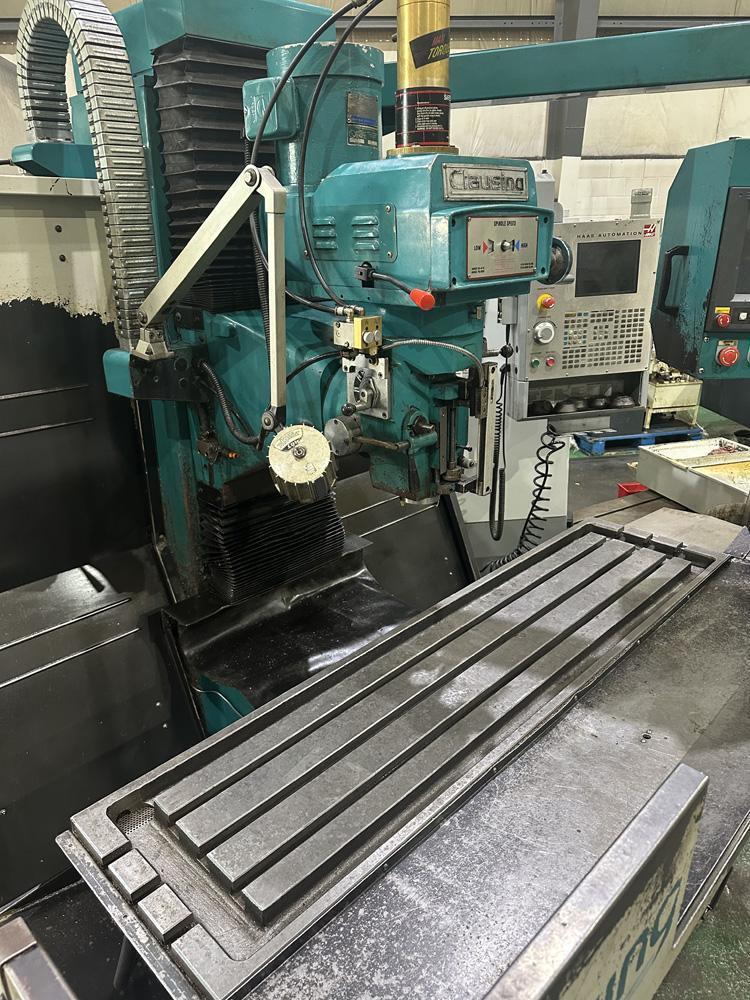

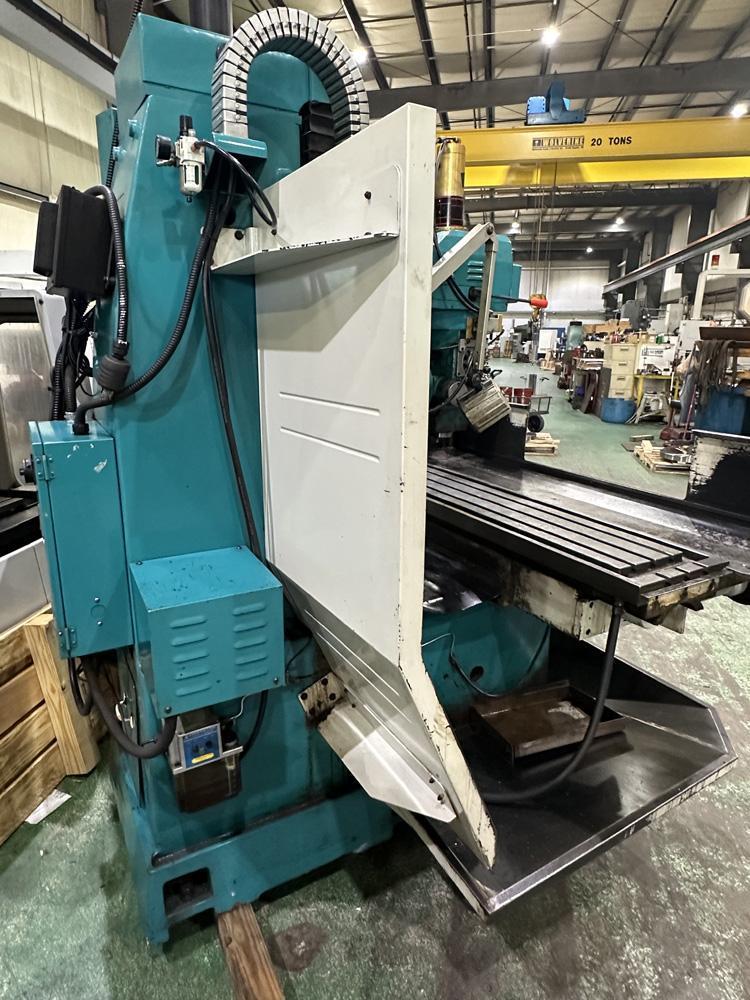

Brand
CLAUSING
Model
6BVSCNC40
Type
Millers, Bed Type
Stock #
64047
Condition
Used
Year
2005
Location
Wixom, Michigan
United States
| Brand | CLAUSING |
|---|---|
| Model # | 6BVS40 |

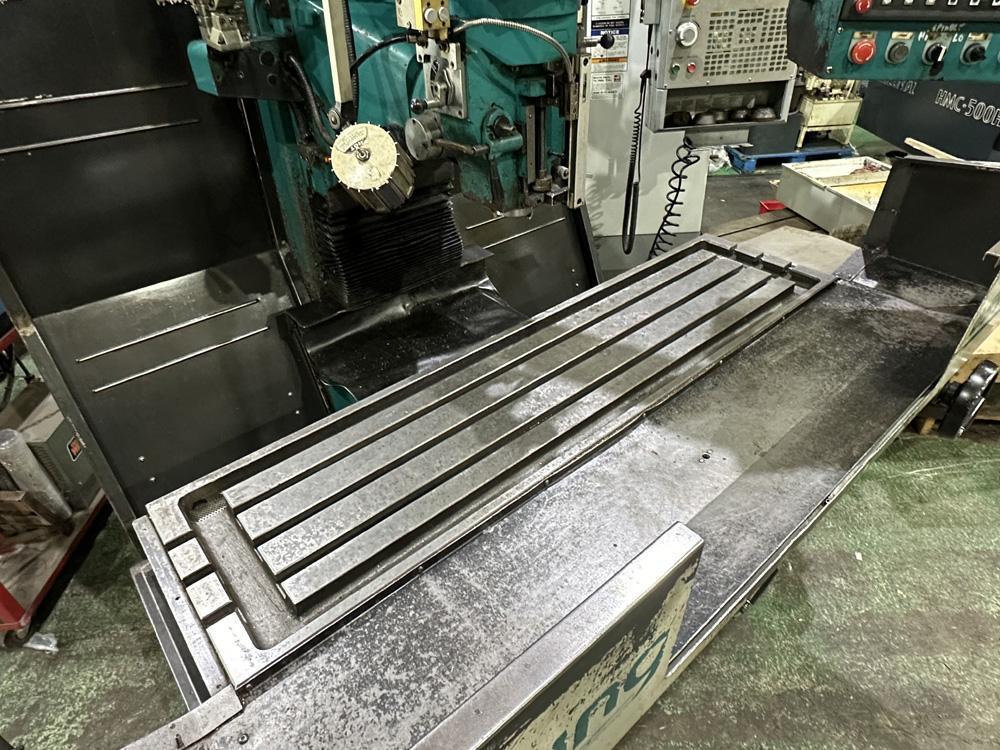

| Table | 15" x 60" |
| Spindle Taper | 40 NS |
| Horsepower | 5 HP |
| Spindle Speed Range | 70 - 4300 RPM |
| Phase | 3 |
| Longitudinal Travel | 41.34" |
| Cross Travel | 19.69" |
| Knee Travel | 23.62" |
| Voltage | 230V |
| Dimensions | 92.91" x 76.77" x 85.43" |
| Head Tilt | 90° Left & Right |
| Motor Hp | 5 HP |
| Net Weight | 6,600 lbs |
| No. of Spindle Speeds | 2 |
| No. of T Slots | 3 |
| Prop. 65 | Yes |
| Quill Diameter | 4.13" |
| Quill Feed | .0016/.003/.006 (0.04/0.08/0.015) |
| Spindle Speed | 70-4300 rpm |
| Spindle To Column | 20.47" (center of spindle) |
| Swiveling Angle & Head | 90° Left & Right |
| T Slot | 0.709" |
| Table To Spindle Nose | 3.93"-27.55" |
| Travel of Z Axis | 23.62" |
| Weight | 6,600 lbs. |
EQUIPPED WITH:
Work Light
Torque Rite Power Draw Bar
40 Tapper Tooling-Approx. 20 Holders
