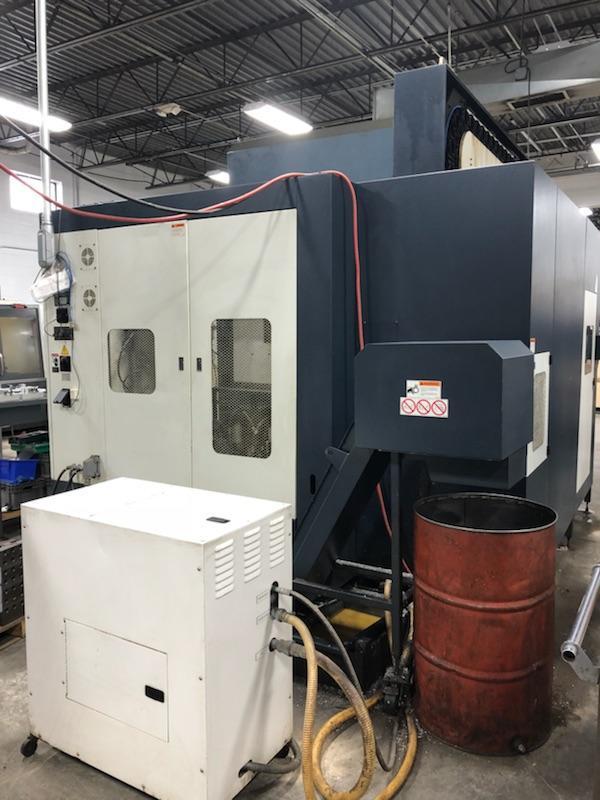

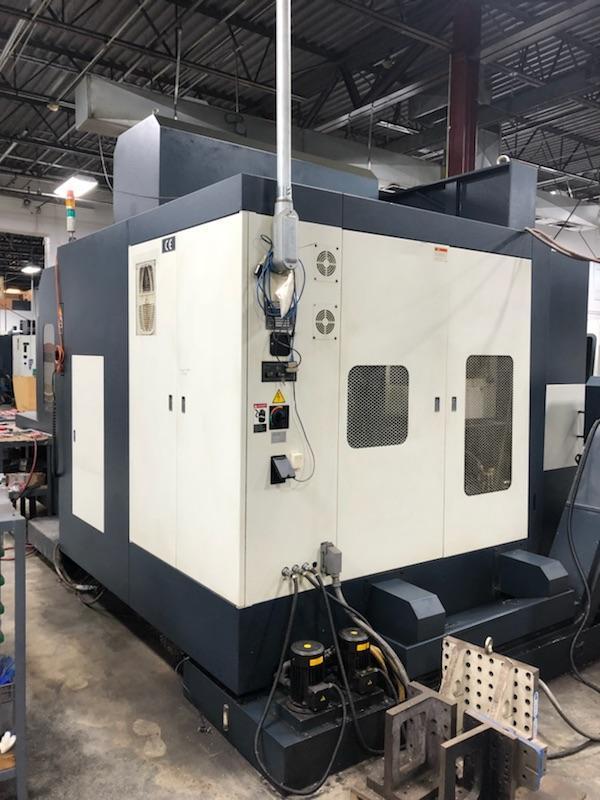

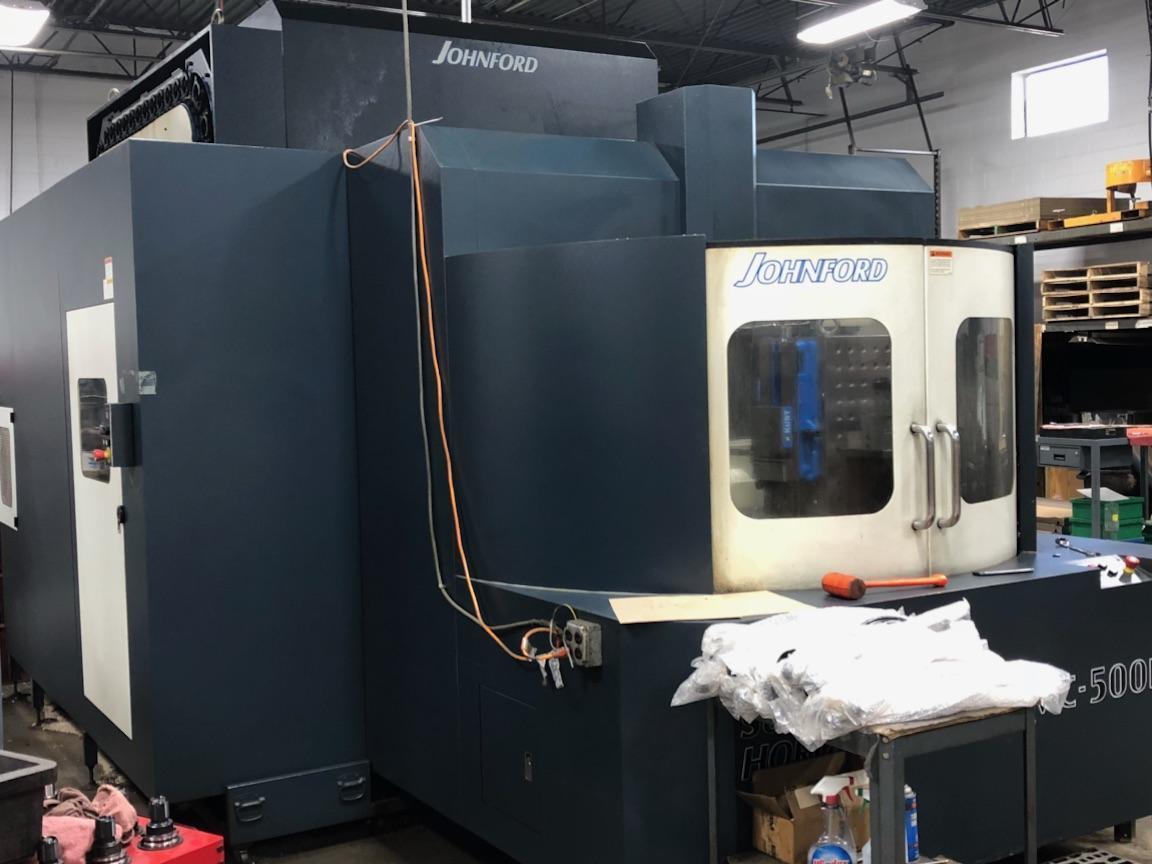

Johnsford Super Horizontal HMC-500-H

Travels: X-30"
            Y-26"
            Z-26"
35 H.P. Spindle
10,000 RPM
60 ATC
Cat 50 Taper Tooling
2-19.7" x 24.8" Pallets (630 x 500 mm)
Cutting Feeds: 0.04 to 591 IPM
Rapid Traverse X,Y,Z...................... 1,575 IPM
Approx Machine Weight..................... 25,300 lbs
Approx Machine Dimensions.....225" x 122" x 124" Tall

Equipped With:

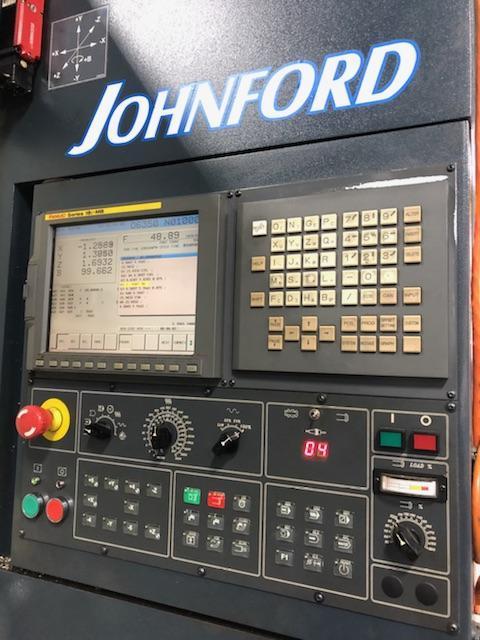

Fanuc 18iMB Control
Full 4th Axis 0.001 Degree Indexing
2 Pallet Automatic Pallet System
High Pressure 1,000 PSI Coolant Thru The Spindle
Chip Conveyors (screw type)
Chip Conveyor (caterpillar type)
Coolant Shower System
Spindle Oil Cooling System
Rigid Tapping
150 Gallon Coolant
Max Load On table: 1210 Lbs
208-220 Volt, 3 Phase, 200 Amp Electrical
90 PSI Air Supply
Air Blast
