Santec RB-10 2 Axis CNC Bed Mill | Lee Stevens Machinery

Brand
SANTEC

Model
RB10

Type
Millers, Bed Type

Stock #
63957

Condition
Very Good

Year
N/A

Location
Wixom, Michigan
United States

Request Quote

Specifications

Equipped With

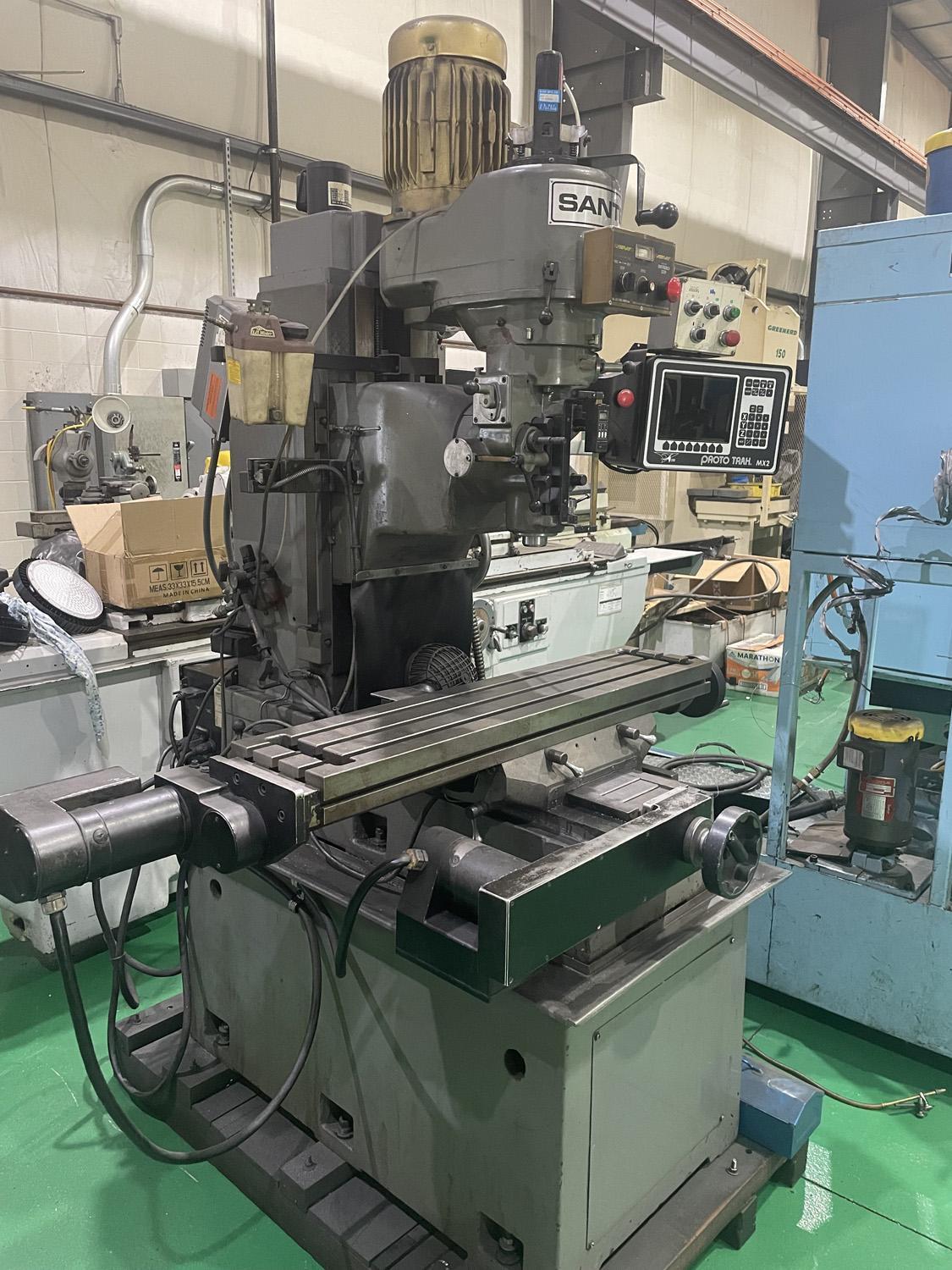

Santec 2 Axis CNC Bed Mill

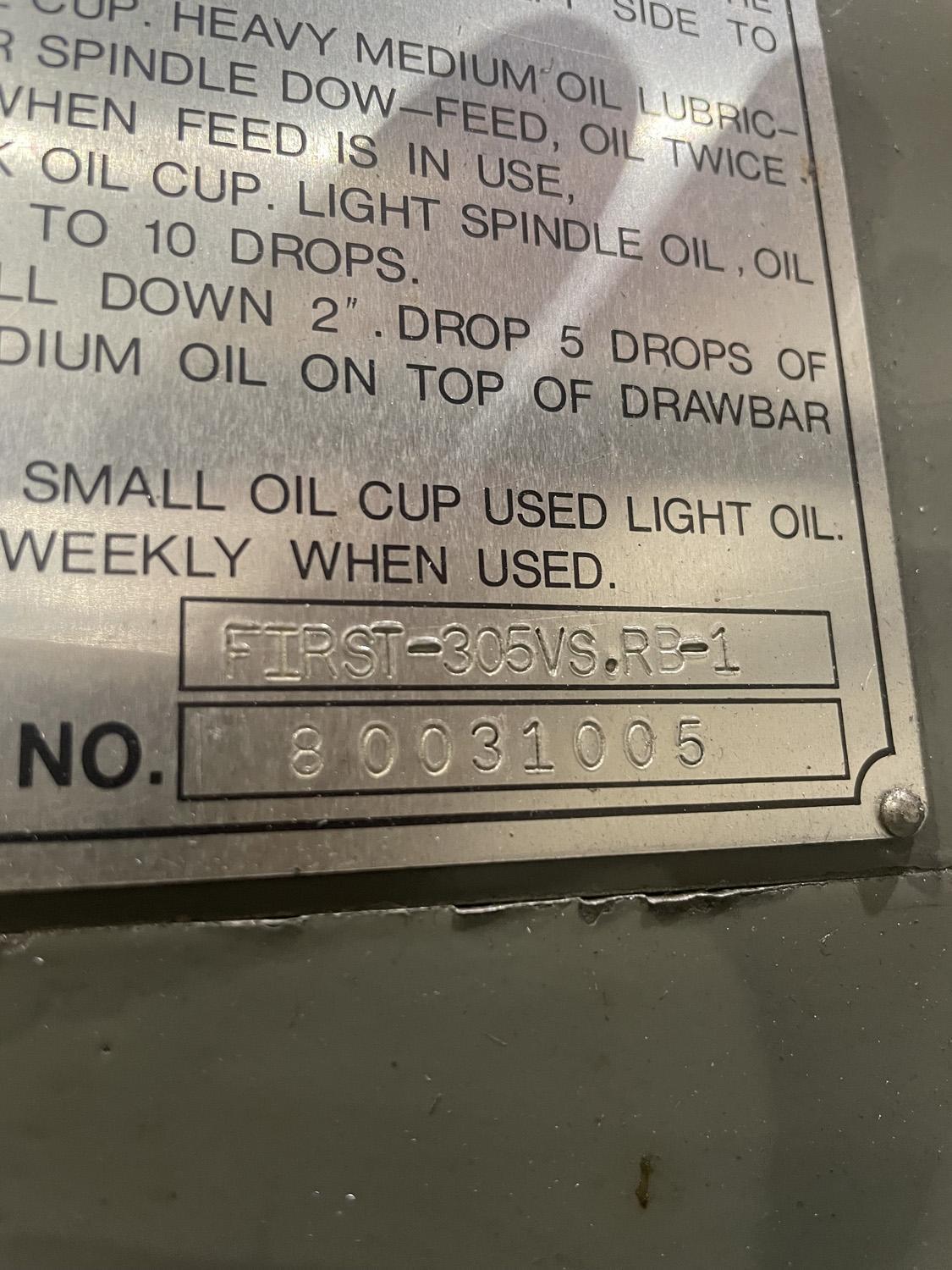

Model: RB-10 Serial No: 80031005
General specifications are approximate and are subject to verification.
Table Working Surface: 9″ x 42″
Longitudinal Travel: 30″
Cross Travel: 12″
Head Travel: 18″
Max Height Table to Spindle: 18″
Quill Travel: 5″
Spindle Speeds: Variable Speed 60 to 4500 RPM
Taper in Spindle: R8
Feeds: 3 Changes .0015 .003 .006
Main Drive Motor: 3HP
Electricals: 220/440 V
Approx. Weight: 2,200 Lbs.
Approx. Dimensions: 51″ L x 60″ W x 90″H
Complete with:

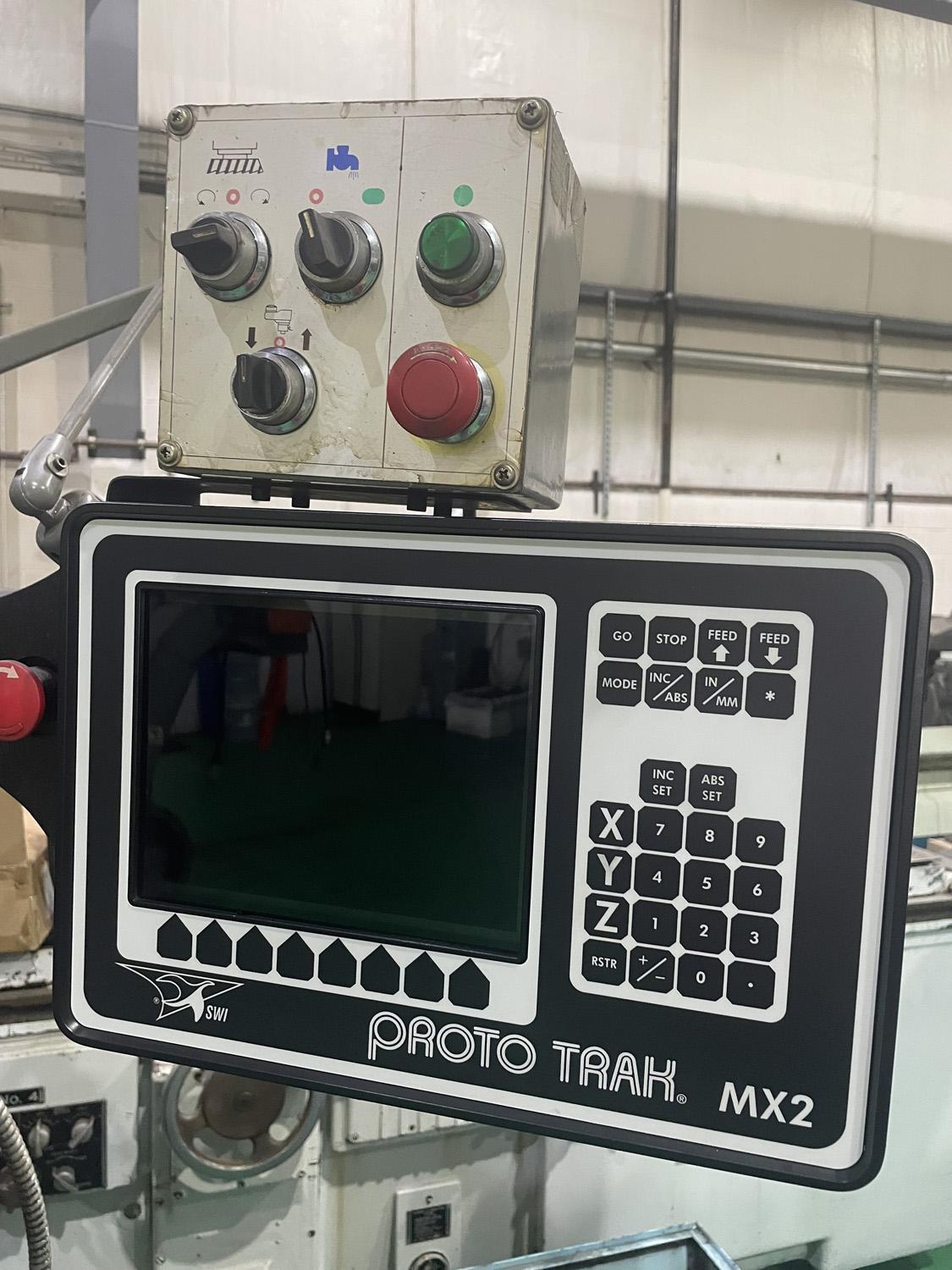

• Proto Trak MX2 CNC Control (3 Axis DRO)
• Coolant System
• Power Elevation of Head Travel

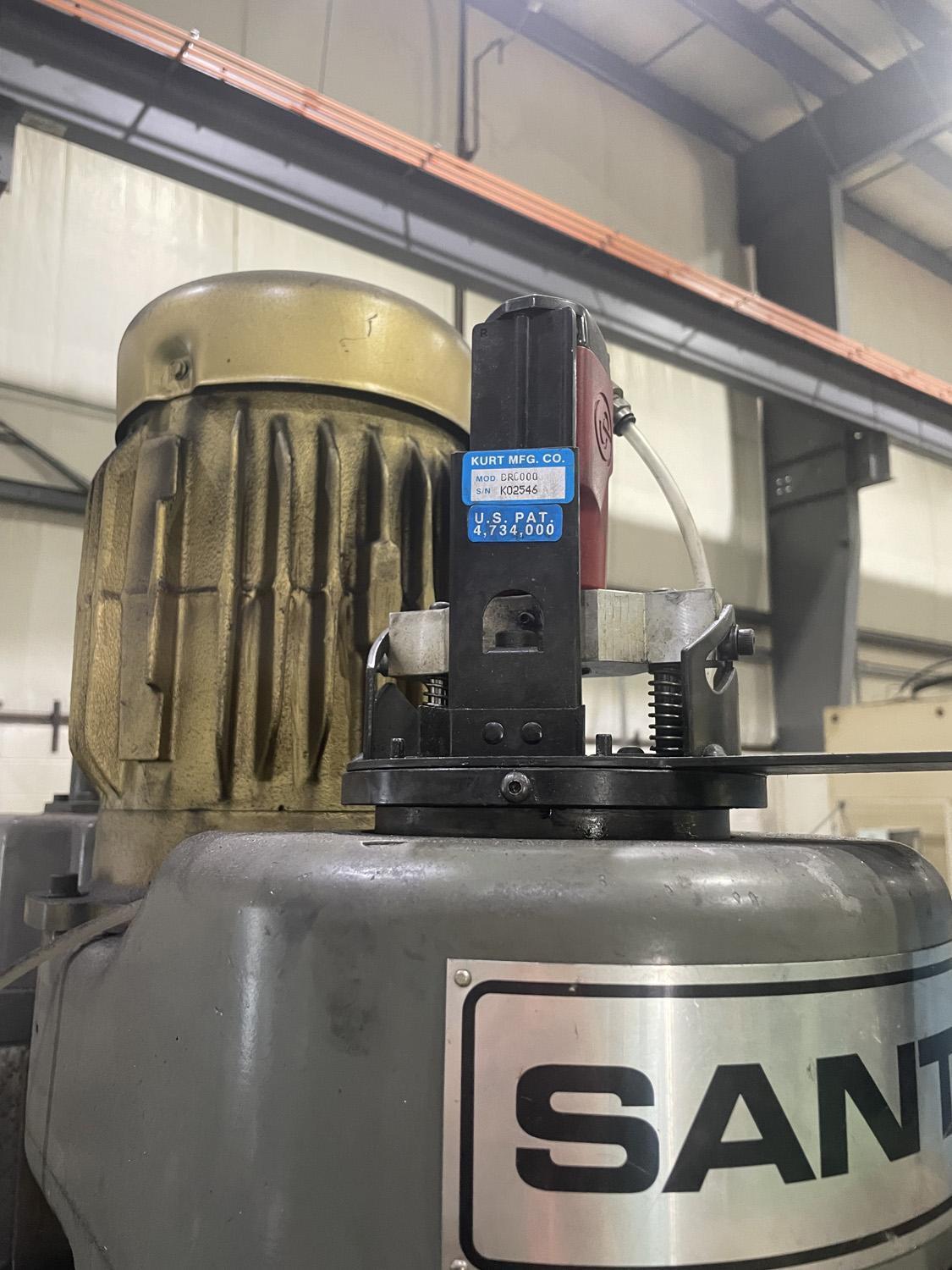

* Kurt Power Drawbar
