STAR CUTTER – ATG -6AC 6 AXIS TOOL AND CUTTER GRINDER

Brand
STAR CUTTER

Model
ATG-6AC

Type
Grinders, Tool & Cutter

Stock #
63954

Condition
Very Good

Year
1998

Location
Wixom, Michigan
United States

Request Quote

Specifications

STAR MODEL ATG - 6AC 6 AXIS TOOL AND CUTTER GRINDER

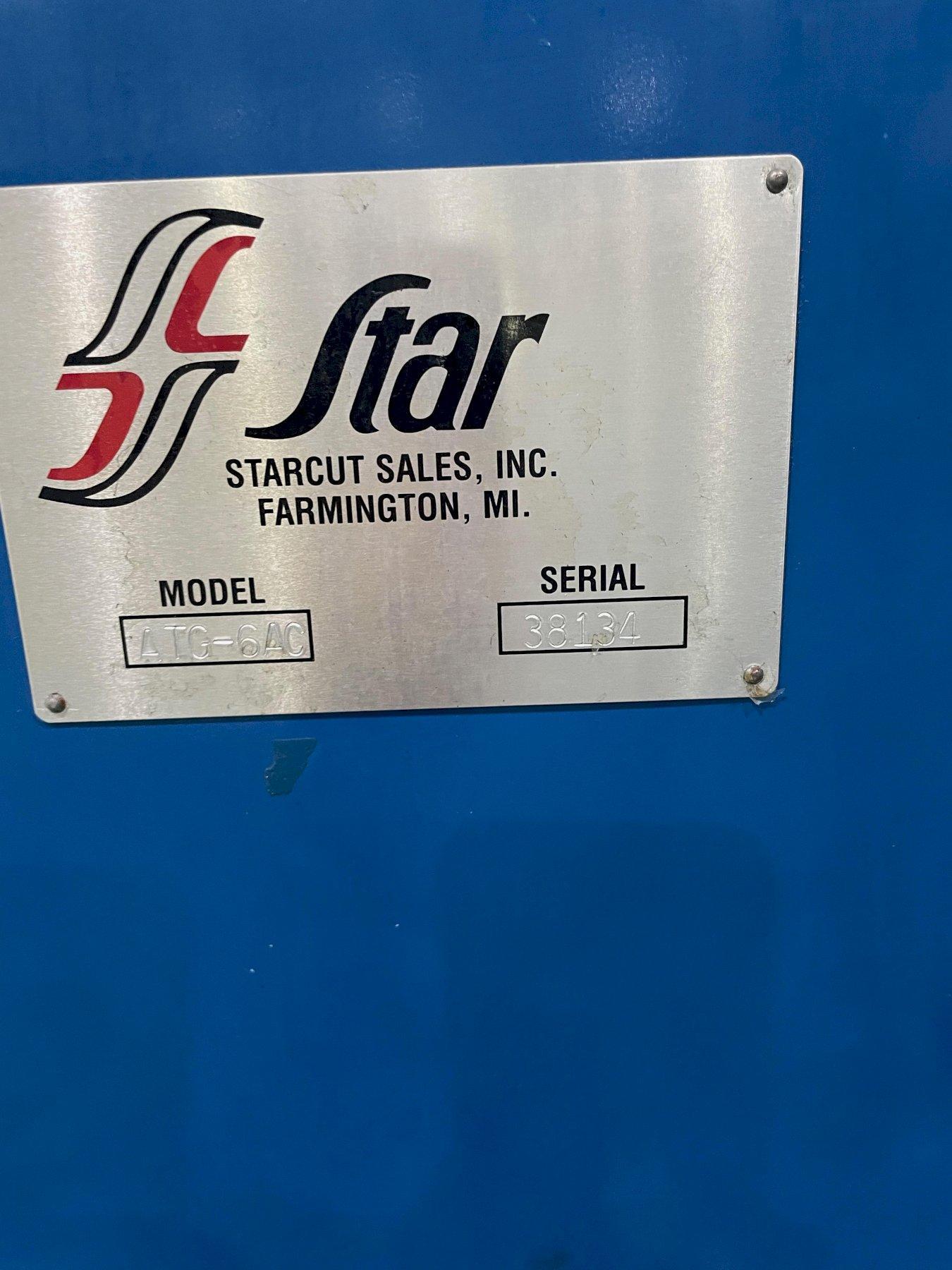

S/N 38134

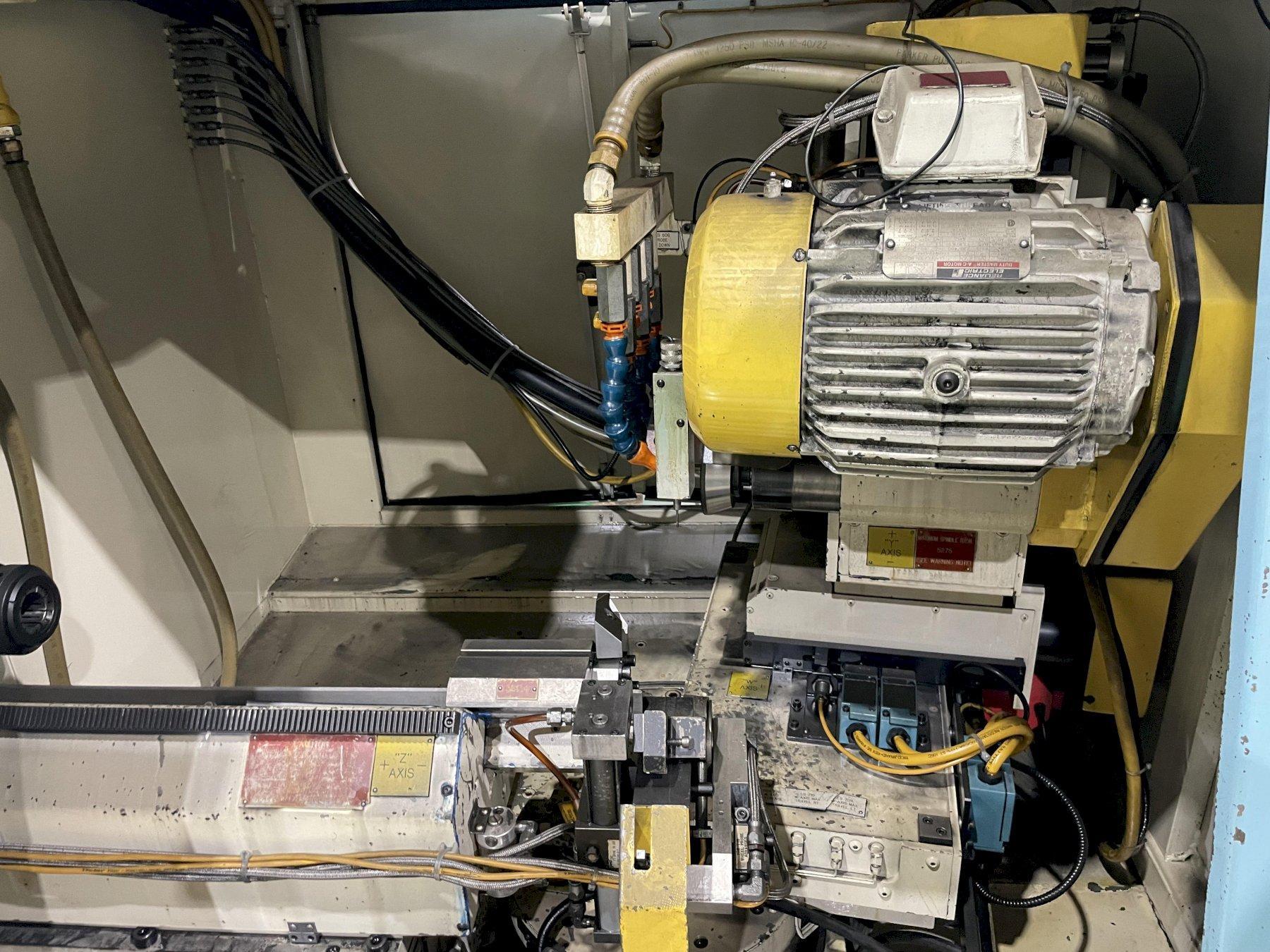

GRINDING SPINDLE MOTOR --------- 5HP AT 3600 RPM

GRINDING WHEEL ---------- DIAMOND OR CBN

GRINDING WHEEL DIAMETER ------- 6" MAX

GRINDING WHEEL SPEED STD ------ 1800 TO 5275 RPM

CAPACITY OF MACH WORK

PIECE DIA ---------- 0.12 TO 1.5"

WORKPIECE LENGTH:

BETWEEN CENTERS ---------- 27"

COLLET & BUSHING ---------- UNLIMITED

LINEAR AXIS TRAVEL:

W-AXIS ---------- -1.50 TO 1.50"

X-AXIS ---------- -2.218 TO 6.1875"

Y-AXIS ---------- -0.5625 TO 4.0312"

Z-AXIS ---------- -10.75 TO O.80"

ROTARY AXIS TRAVEL

A-AXIS ---------- 0 TO 360 DEG.

B-AXIS --------- 0 TO 90 DEG.

COOLANT PUMP MOTOR ---------- 3HP 3600 RPM

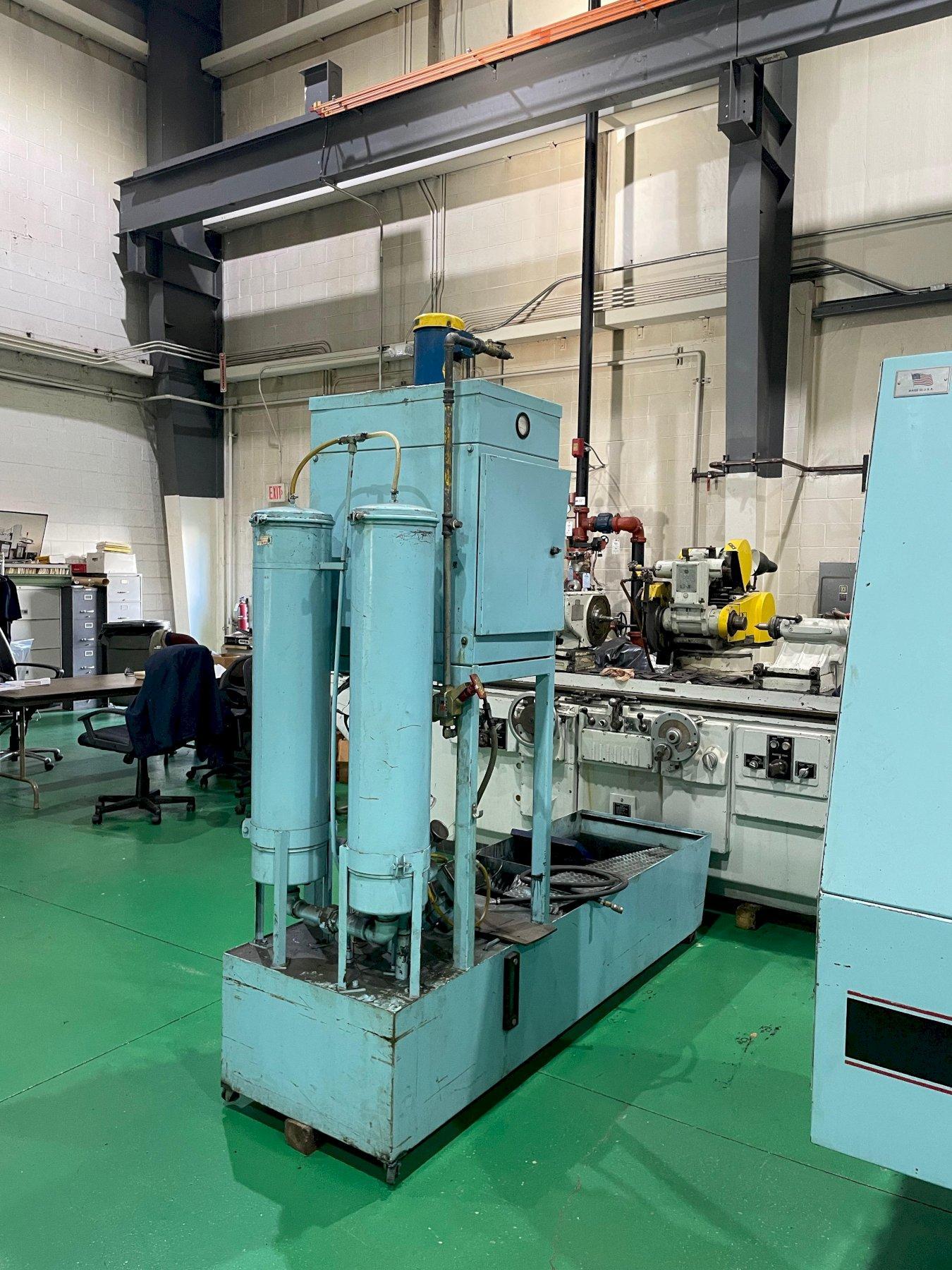

COOLANT TANK --------- 112 GALLONS

COOLANT FLOW --------- 22 GPM --- 30 PSI

SLIDE LUBRICATION RESERVOIR ---- 12 PINTS

SLIDE LUBE OIL -------- MOBIL VACTRA #2
