Highlights

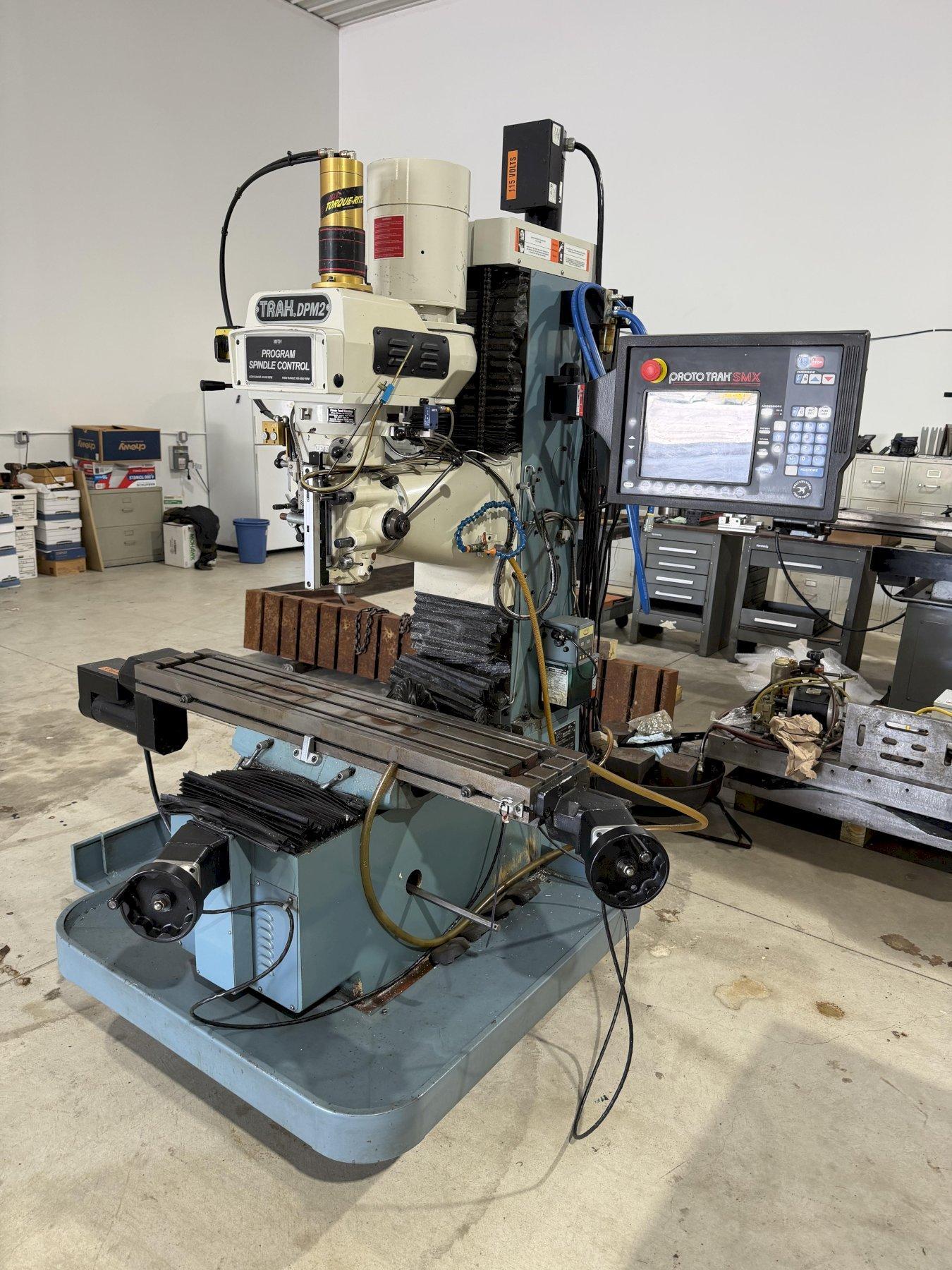

PROTO TRAK SMX 3 Axis DRO & Control, Work Light, Coolant, Power Drawbar
Overview
- Model
- TRAK DPMSX 2P
- Type
- Bed Type Millers
- Year
- 2016
- Condition
- Like New
- Stock #
- 64122
Specifications
- Table-W
- 9 inches
- Table-L
- 49 inches
- # Axes
- 3
- Power
- 3 horsepower
- Taper
- R8
- CNC Control
- yes
- Type of CNC Control
- Proto TRAK SMX
Spec Sheet
- Control System: ProtoTRAK SMX 3-Axis CNC
- Table Size: 9" x 49"
- Table Weight Capacity: 1,320 lbs
- X-Axis Travel: 31"
- Y-Axis Travel: 16"
- Z-Axis Travel (Head): 27"
- Quill Travel: 5"
- Quill Diameter: 3.937"
- Spindle Taper: R8
- Spindle Motor: 3 HP
- Spindle Speed: 40 – 5,000 RPM (Programmable Electronic Variable Speed)
- Spindle Center to Column Face: 18"
- Rapid Traverse Rate: 150 IPM

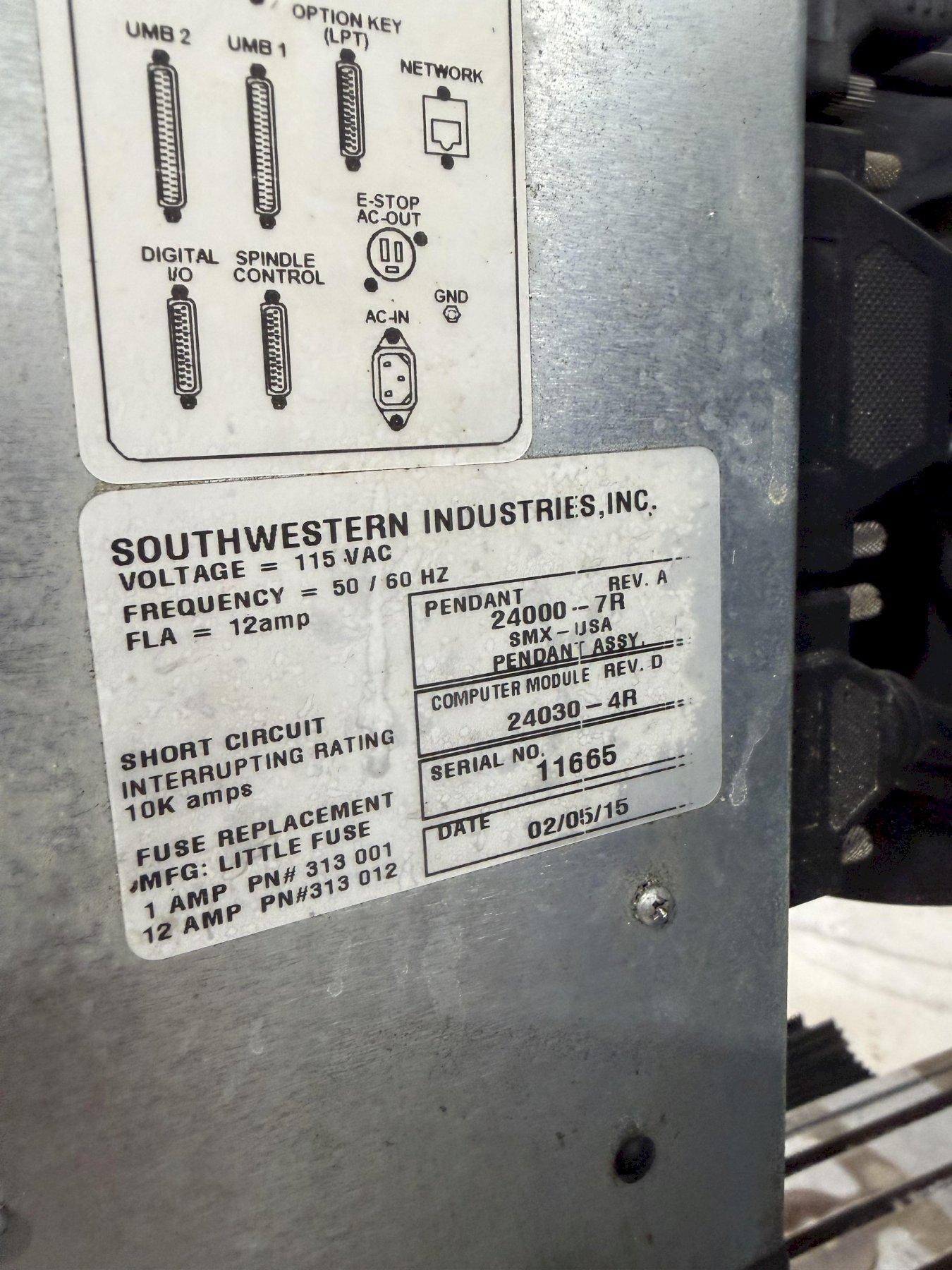

- Power Requirement: 220V / 3-Phase / 60 Hz (110V 1-Phase for Control)
- Approximate Dimensions (L x W x H): 72" x 64" x 86"
- Approximate Weight: 4,000 lbs
Key Features & Highlights

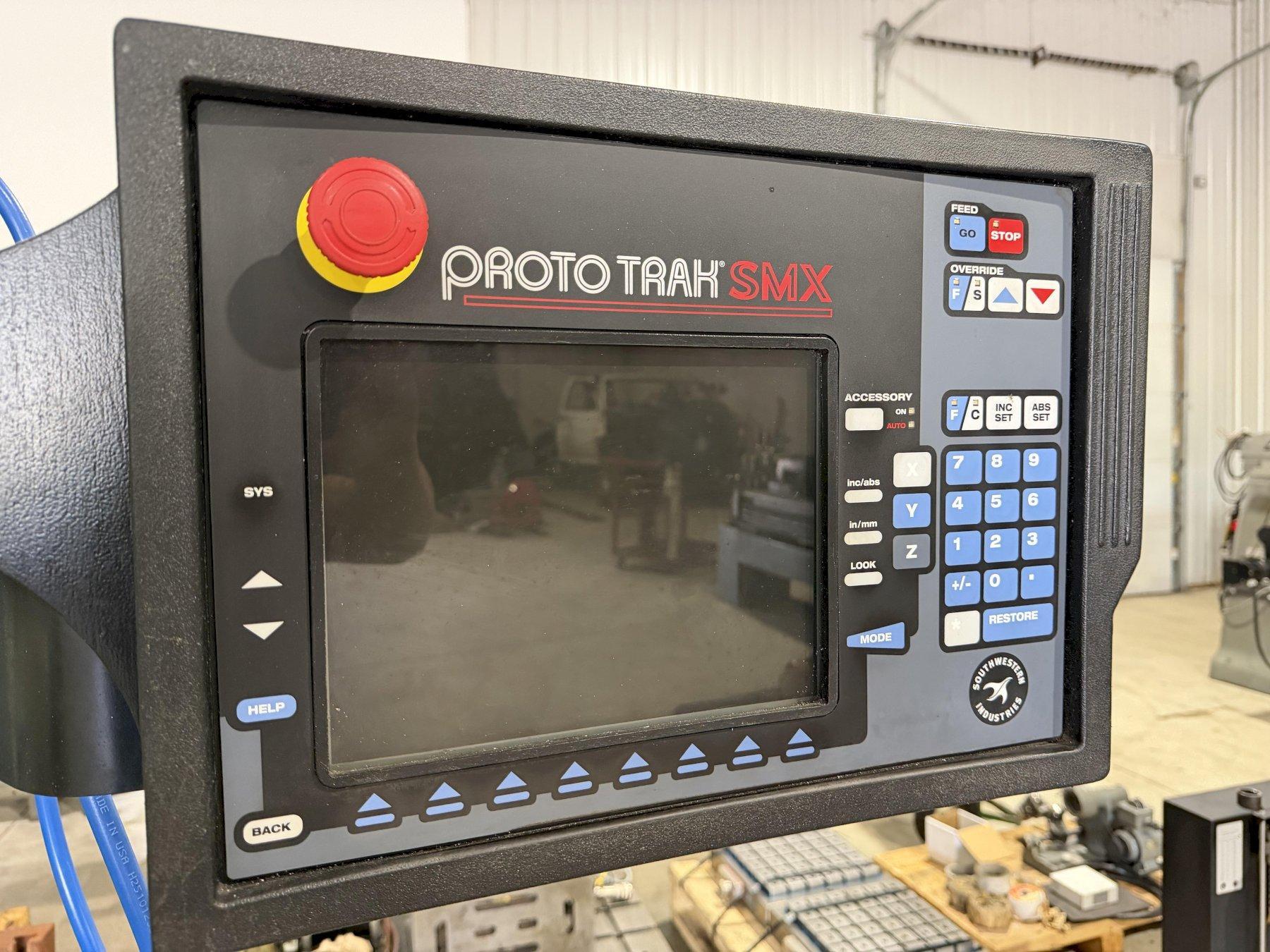

- ProtoTRAK SMX 3-Axis CNC Control: Conversational programming for fast shop-floor operation, plus full DRO capability for manual use.

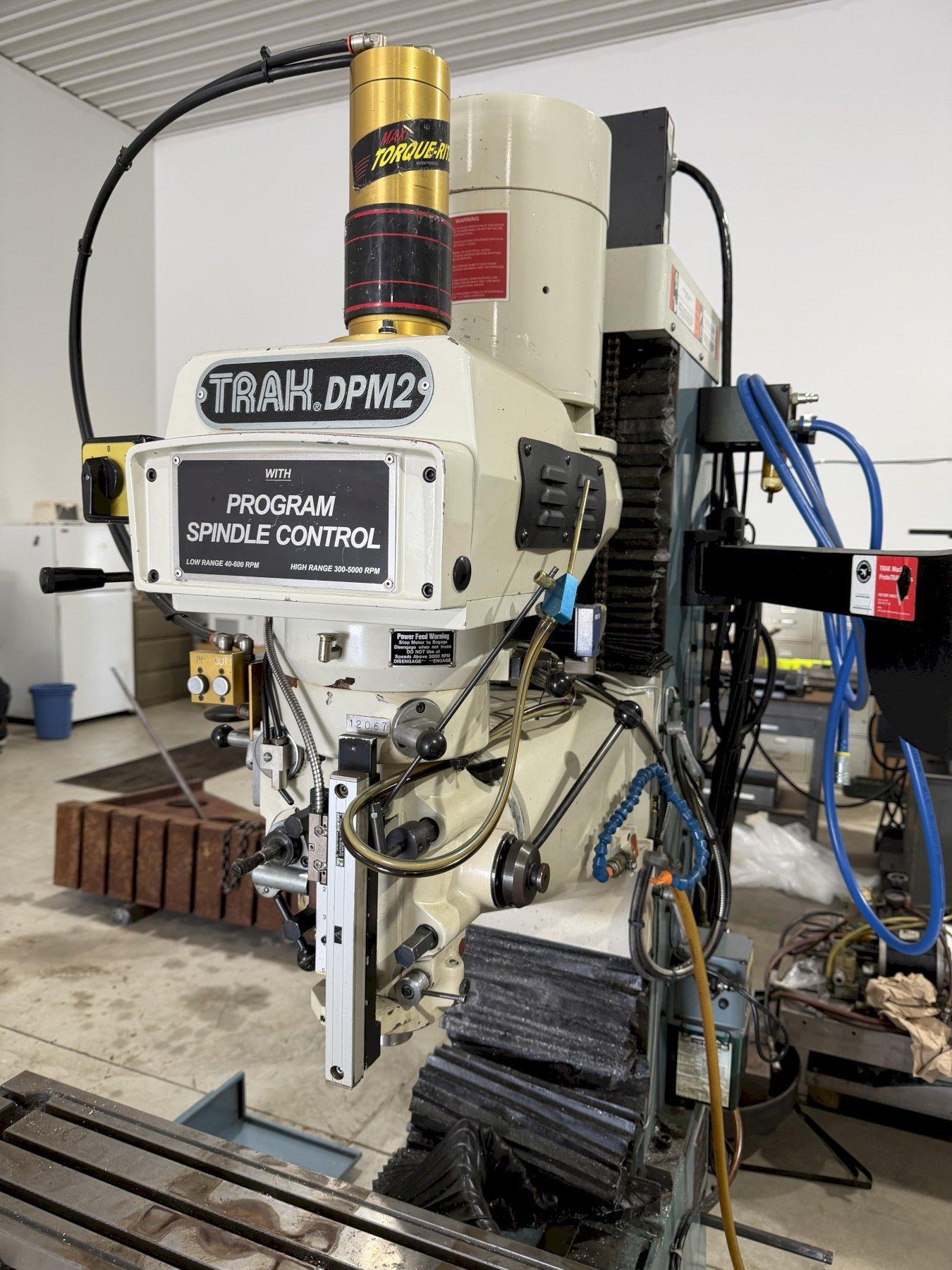

- Programmable Spindle Head (P-Option): Electronic variable speed control directly integrated into the CNC program.
- Rigid Bed-Mill Design: Fixed-table design with Z-axis head travel provides maximum stability and support for heavy workpieces.
- Precision Ground Table & Ways: Hardened and ground box ways with Turcite-B lining for long-term accuracy and vibration damping.
- Auto Lubrication System: Keeps slides and ballscrews continuously lubricated during operation.
