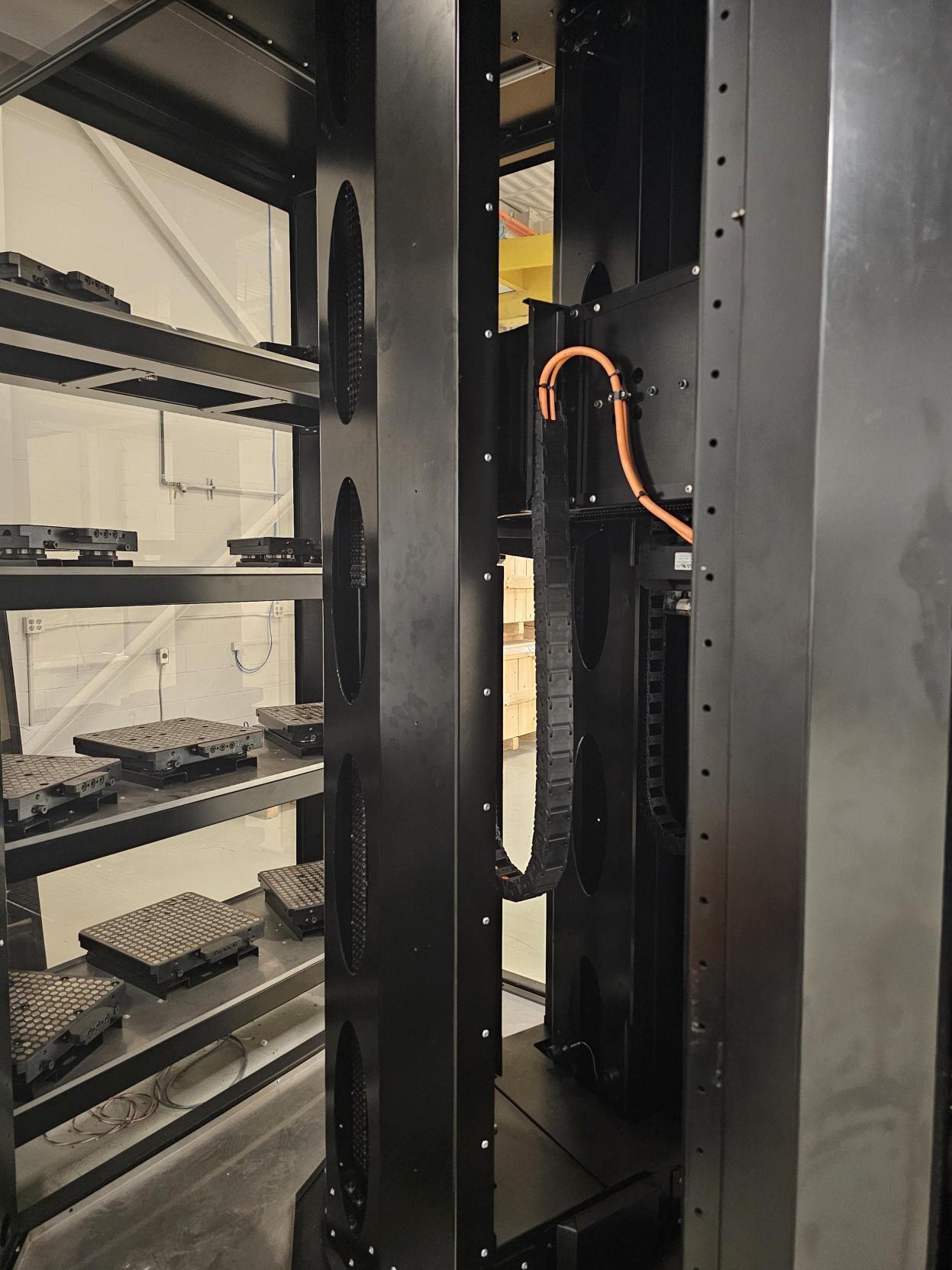

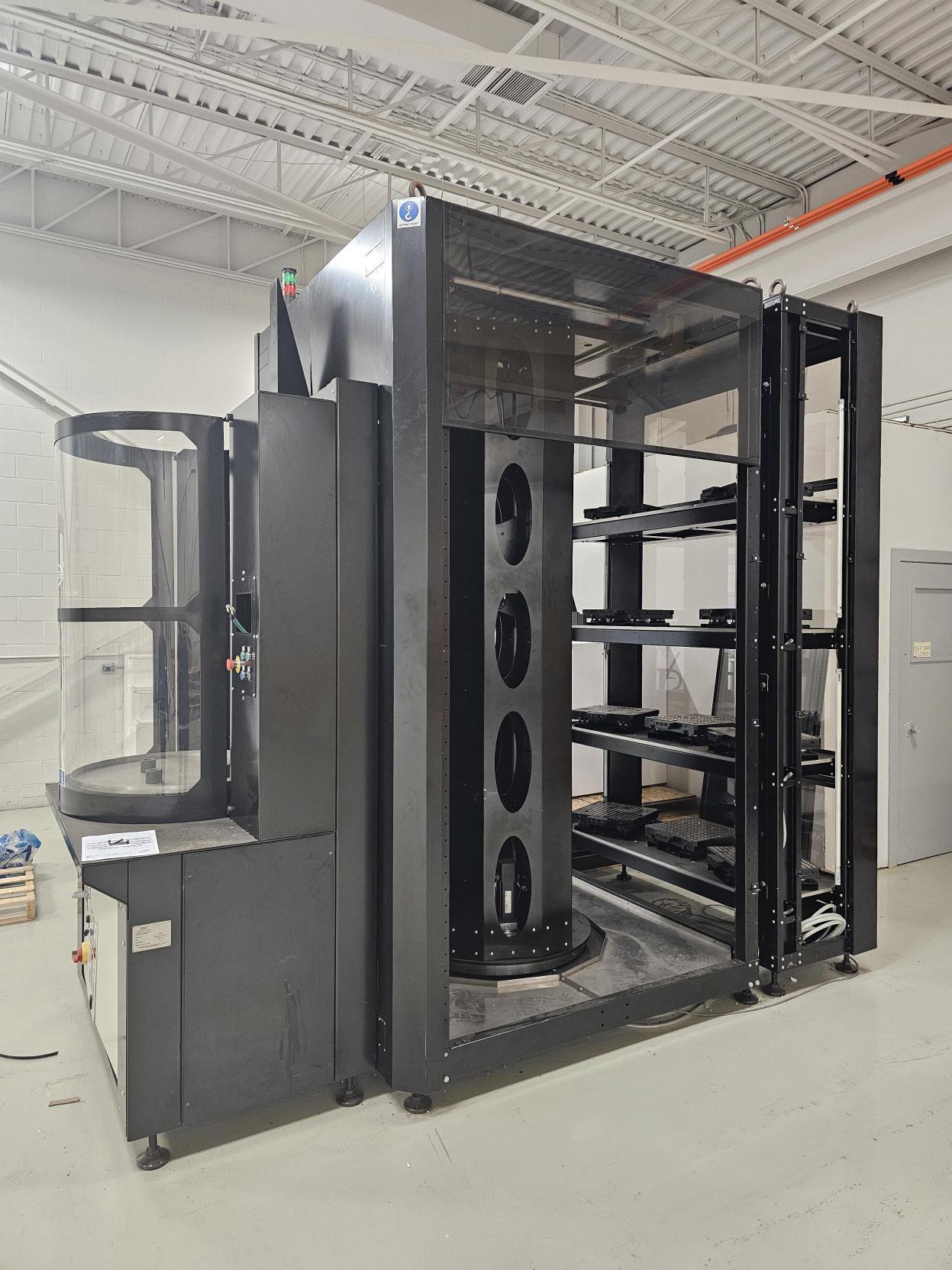

FCS Intergrated Systems Pallet Changer RP46 H3000 **BRAND NEW**

Overview

Make
FCS
Model
RP46 H3000
Type
Manual And Cnc Pallet Changers
Year
2026
Condition
New
Stock #
64120

Spec Sheet

FCS PALLET CHANGER RP46 H3000

DIMENSIONS: 4200 x 1900 x H3000 mm

ROTATION: 359°

LOAD CAPACITY (PIECE + PALLET): 300 Kg

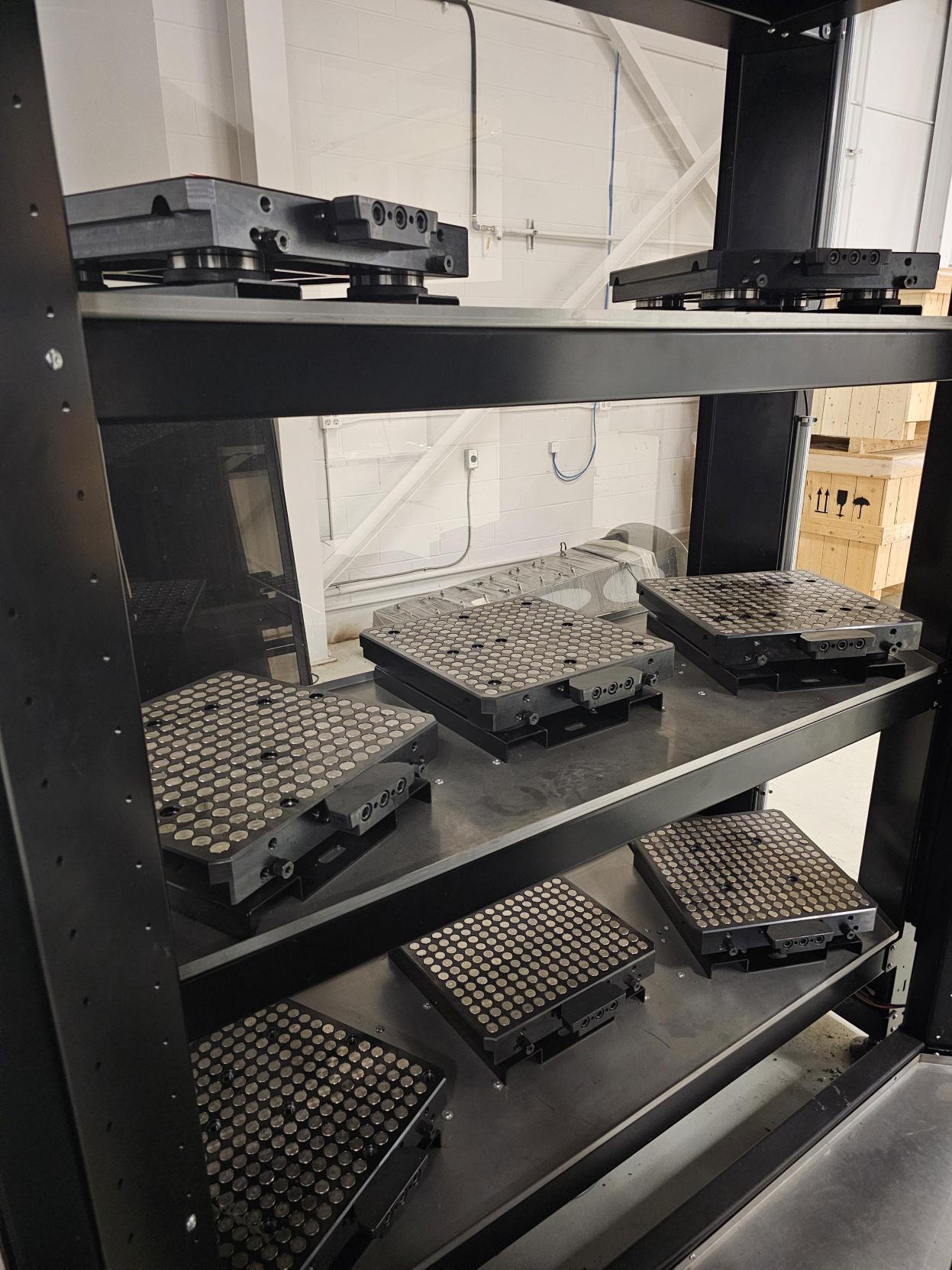

PALLET SIZE: Pallet FCS System 400x400 mm - M12 Grid 25mm

MAX ARM STROKE: 1000 mm

PALLET POSITIONS NUMBER: 10 positions with maximum workpieces sizes:
6 positions: 450 x 450 x H350 mm (from pallet surface)
4 positions: 600 x 400 x H350 mm (from pallet surface)

LOADING/UNLOADING POSITION:
1 rotary table with safety

PALLET GRIPPER: 1

CONTROL:
FCS PLC System with Profibus communication/digital
LCD Touch terminal
Brushless motors

CONTROL FUNCTION:
Possible functions that can be performed by the control of the pallet changer:
- Loading / unloading management.
- Encoding pallet; - Autorun pallet list with priority of exchange pallet (not synchronized with the program list in the milling machine); - Indication of the state pallet / workpiece (worked / not worked, present / not present) - Setup parameters.

STANDARD LOGIC:
The machine CNC controls the Pallet changer
The mode has a "Pallet List " on the PLC FCS.
The CNC MACHINE makes a pallet change request to the PLC FCS which will start the procedure of automatic pallet changing programmed according to the Pallet List.
